Basic Concepts and Functional Characteristics of Multifunction Power Meters

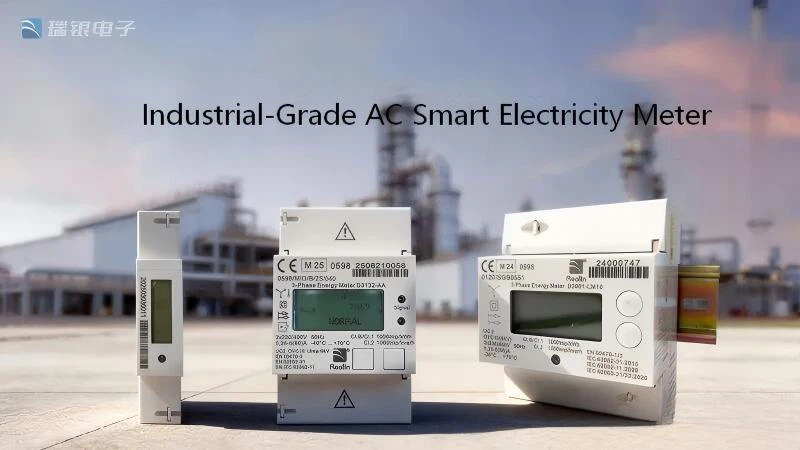

A multifunction power meter is an intelligent meter with multiple functions, such as programmable measurement, display, digital communication, and electric energy pulse output.
In terms of measurement functions, it can accurately measure all common electrical parameters, including three-phase voltage, three-phase current, active power, reactive power, frequency, power factor, and four-quadrant electric energy. Its high measurement accuracy can meet the precision requirements of most industrial application scenarios.
The multifunction power meter is equipped with an RS485 communication interface and supports the MODBUS-RTU communication protocol, allowing it to be used either in a network or independently. Users can conveniently switch displays and configure meter parameters on-site, providing strong flexibility.
Application Scenarios of Multifunction Power Meters
Multifunction power meters have an extremely wide range of applications, covering almost all scenarios that require electrical monitoring.
In the industrial production field, they can monitor electrical parameters on production lines, helping enterprises optimize energy consumption and ensure the safe operation of equipment.
In intelligent buildings, multifunction power meters can measure the electrical system of the entire building, eliminate potential safety hazards, and improve energy utilization efficiency.
In the field of power system and distribution network automation,Multifunction power meters are suitable for scenarios such as substation automation, distribution network automation, and residential area power monitoring. They can be used for comprehensive monitoring and management of electrical parameters in various incoming circuits and high-capacity outgoing circuits, providing an important guarantee for the safe and stable operation of power systems.
With the development of new energy technology, multifunction power meters also play an important role in microgrids and renewable energy systems. According to the national standard Code for Commissioning and Acceptance of Microgrid Connected to Distribution Network, the commissioning and acceptance of microgrid interconnection require the use of precise electrical measurement instruments for system debugging and verification.
Technical Differences from Electric Energy Meters
The core function of an electric energy meter is to accurately measure active or reactive electric energy. It is mainly used for energy trade settlement and serves as the legal basis for cost calculation between power suppliers and consumers.
Core Function: Its function is relatively specialized - it accumulates energy consumption with high precision and ensures data cannot be tampered with.
Application Scenarios: It is typically applied at settlement points between power companies and users, such as the main incoming lines of enterprises and residential households.
1.Fundamental Differences in Certification Systems: Mandatory CPA vs. Market Access Certification
Certification requirements are one of the most prominent distinguishing marks between the two, rooted in whether they are used for legal trade settlement.
| Feature Dimension | Multifunction Power Instrument | Energy Meter |
|---|---|---|
| Core Purpose | System monitoring, energy management, fault diagnostics | Energy trading settlement, statutory (legal) metering |
| Functional Focus | Real-time multi-parameter measurement, data analysis, control and alarms | High-accuracy electrical energy metering |
| Communication Protocols | Common industrial protocols such as Modbus-RTU | Power-grid–specific protocols, such as DL/T 645 |
| Physical Structure | No sealing; convenient for parameter configuration and debugging | Must be sealed to prevent unauthorized opening or data tampering |
| Data Management | Users may clear energy values according to management requirements | Energy readings must not be cleared, ensuring continuous validity of settlement data |
2.Mandatory CPA Certification for Electric Energy Meters
CPA (Pattern Approval Certificate of Measuring Instruments) is a mandatory certification system implemented by China for measuring instruments.
● Purpose: To ensure that electric energy meters used for trade settlement are accurate, fair, and reliable, with their data having legal validity. Electric energy meters without CPA certification are not allowed to be sold in China or used for settlement purposes.
● Marking: Electric energy meters must display the CPA logo and certificate number on their nameplates.
3.Certification Requirements for Multifunction Power Meters
● Non-mandatory CPA Certification: Since multifunction power meters are mainly used for internal monitoring and management and do not directly participate in trade settlement, they are usually not required to obtain CPA certification.
● Other Certifications: Although CPA certification is not mandatory, multifunction power meters often need to pass other types of certifications when entering specific markets or meeting specific functional requirements. For example, CE certification is a mandatory safety certification mark for products entering the European Economic Area, indicating that the product complies with EU safety, health, and environmental protection requirements.
conclusion
As an important piece of equipment in modern power monitoring systems, multifunction power meters have become indispensable key devices in industrial automation, smart grids, and energy management systems, thanks to their advantages such as multi-function integration, high-precision measurement, powerful communication capabilities, and flexible configuration.
Compared with electric energy meters, which are mainly used for energy metering, multifunction power meters have obvious advantages in functional diversity, technical complexity, and system integration, and can meet the higher requirements of modern power systems for refined monitoring and intelligent management.
