Realin three-phase smart energy meters are designed specifically for the EU metering and billing market. They are Measuring Instruments Directive (MID) certified (B+D module), comply with EN50470-3 / IEC62052 series standards, and support direct or CT-based energy metering of three-phase systems (3×230/400V). They can be used for import/export bidirectional metering, energy monitoring, smart buildings, and industrial power distribution systems.
- Meets EU settlement-grade metering requirements (MID certification), facilitating entry into the EU market.
- Fully supports three-phase systems, suitable for industrial/commercial applications.
- Powerful intelligent communication capabilities, allowing integration into modern energy management systems.
- Easy installation and maintenance, reducing system integration costs.
👉 Contact us now for technical specifications, bulk quotations, and customized smart metering solutions for your project!
Product Parameters
| Type | D3132 |
| standards | EN 50470-3:2022,IEC 62053-21/23:2020,IEC 62052-31:2015,UL61010-1,UL61010-2-030 |
| voltage | |
| Rated voltage un | 3x230/400v |
| voltage range | 70%un~140%un |
| current | |
| Minimum current Imin | 0.25A |
| Reference current Ib | 5A |
| Maximum current Imax | 80A |
| starting current ist | 0.4%Ib |
| Rated Frequency Fn | 50HZ |
| Accuracy | class B/1.0 for active;class 2.0 for reactive |
| pulsating Indicator | LED |
| pulsating(meter constant) | 1000 imp/kwh;1000 imp/kvarh |
| Environment | |
| Temperature range | operation:-40-70℃ |
| storage:-40-85℃ | |
| port ect ion Degree | IP51 in protective enclosure |
| Insulation class | II |
| Typical power consumption | |
| voltage circuit active lap parent power atun | ≤1.5W/8VA |
| current circuit apparent power at Ib | <1VA |
| LCD Display | Dot Matrix type,backlight supported |
| communication Interface | RS485 port,up to38400 b ps |
| weight of Meter | About0.3kg |

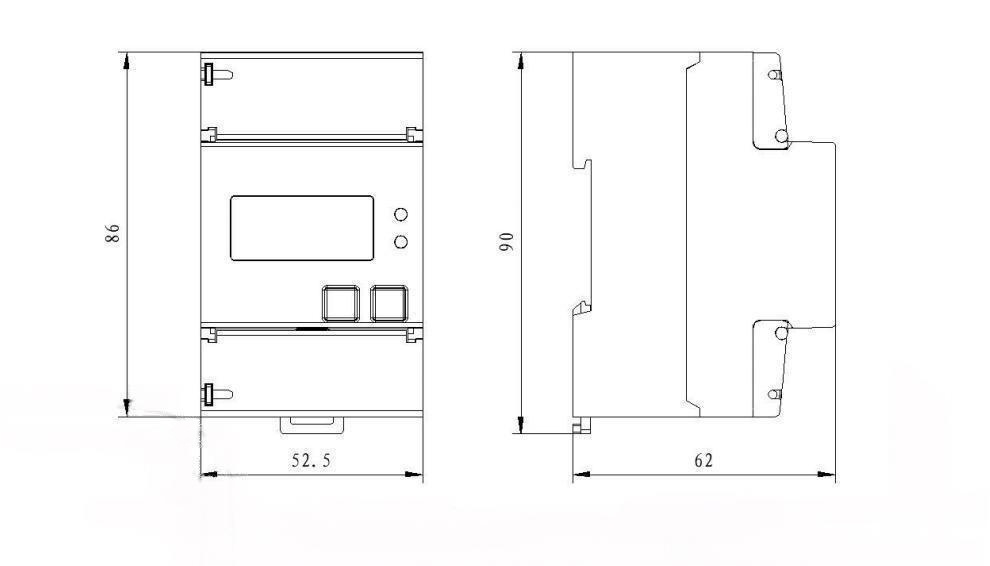

| Dimension(LXW XD) | 90x52.5x62mm |
MID Certified Three-Phase Smart Meter Core Functions
- B+D Module Certification: Suitable for contract billing and legal settlement purposes.
- Three-Phase Compatibility: Supports three-phase four-wire (3P4W) systems with voltage ranges such as 3×230/400V, suitable for European standard three-phase power supply environments.
- Intelligent Communication: Equipped with RS-485/Modbus RTU, pulse output, and even LoRaWAN interfaces, suitable for integration with EMS/AMI/BMS systems.
- Bidirectional/Multi-Period Metering: Supports inlet/outlet metering (e.g., in photovoltaic grid-connected scenarios), multiple billing period switching, and sub-metering functions.
- Easy Installation and Structure Adaptability: Suitable for common DIN rail or panel mounting, ideal for deployment within distribution cabinet.
