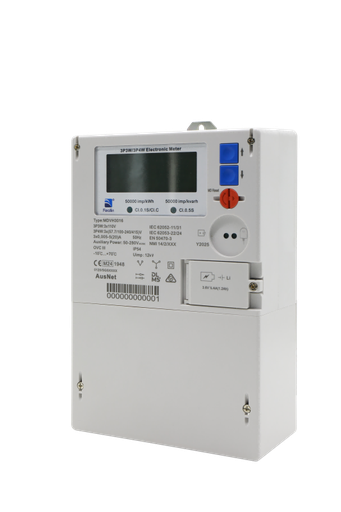

Three Phase Three Wire Class 0.1S Meter Feature
Ultra-high metering accuracy: The accuracy reaches 0.1 level, ensuring that the active and reactive energy metering errors are extremely small.
Adapt to three-phase circuits: Accurately measure the three-phase system power to ensure the adaptability of power metering.
Wide range measurement capability: It can adapt to a wider voltage and current range and is suitable for various power environments.
Multiple practical functions: In addition to basic metering, it also has remote communication functions, which facilitates remote meter reading and monitoring.
| Type | MDVH3016 |
| Standards | IEC 62052 - 11, IEC 62053 - 22/24, IEC 62056 - 21, IEC 62056 - 61, IEC 62059 - 32 - 1 |
| Voltage | |
| Rated voltage Un | 3P4W - 3×57.7/100 - 240/415V;3P3W - 3×110V |
| Voltage range | 80%Un - 120%Un |
| Current | |
| Minimum current Imin | 0.01A/0.05A |
| Reference current In | 1A/5A |
| Maximum current Imax | 6A/20A |
| Starting current Ist | 0.1%In |
| Rated Frequency Fn | 50Hz |
| Accuracy | Class 0.1S for active; Class 0.5S for reactive |
| Pulsating Indicator | LED |
| Pulsating (meter constant) | 50000imp/kWh; 50000imp/kvarh |
| Environment | Operation- 10 - 70℃ |
| Temperature range | -Storage- 10 - 85℃ |
| Protection Degree | IP 54 |
| Insulation Class | II |
| Typical Power Consumption - | |
| Voltage circuit active/apparent power at Un | ＜1W/1VA (Powered by auxiliary power supply) |
| Current circuit apparent power at In | ＜1.3 VA |
| LCD Display | Color display with configurable decimal places, backlight supported |
| Backup Power Supply | Replaceable battery and internal super capacitor |
| RTC | Provides RTC with clock accuracy according to IEC62054 - 21 |
| Communication Interface | 1*Optical Port |
| 1*Ethernet Port (RJ45 type) | |
| 2*RS485 Port (RJ45 type) | |
| 2*RS485 Port (terminal type) | |
| 1*RS485 Port (RJ45 type) with power output 9V (350mA) | |
| Communication Protocol | DLMS/Modbus/DNP3 (Modbus & DNP3 is for SCADA) |
| Auxiliary Supply Facility | Support auxiliary supply facility with 50 - 280V (AC or DC) AUX first priority |
| I/O Interface | 5*Signal Inputs |
| 5*Signal Outputs | |
| 2*Relay Outputs | |
| Weight Of Meter | About 1.9kg |
| Dimension(L×W×D) | 272.0×174.5×80.5mm |
WHY CHOOSE US
One-stop purchasing service: We have a wide range of products, including smart meters, EV charging meters, AMI solutions, etc., and we can provide one-stop purchasing.
Forward-looking layout in the new energy field: In 2017, we laid out the new energy field, and our products are suitable for emerging scenarios such as photovoltaic grid connection and energy storage, with strong foresight.
FAQ
Can it be adapted to high-voltage three-phase three-wire circuits?
It can be connected to the high-voltage system through the matching voltage transformer and current transformer. The transformer with the corresponding strain ratio needs to be configured according to the actual voltage level.
What is the service life of the equipment?
Under normal use, the life of the core metering components can reach 10 years. It is recommended to re-check the accuracy after the life is exceeded.
Are there any special requirements for installation?
It needs to be installed vertically in a dry and vibration-free environment with an ambient temperature of -10℃~+70℃. Heat dissipation space needs to be reserved during installation.
Hot Tags: three phase three wire class 0.1s meter, China, manufacturers, customized, bulk, low price, in stock
