3 phase 4 wire energy meter Feature
Accurate and reliable measurement: 1.0S-level high precision meets national standards, stable measurement under a wide load range, ensuring accurate electricity data, and providing a reliable basis for billing and management.
Intelligent and convenient management: Supports RS485 and wireless communication, remote meter reading and monitoring, and anti-electricity theft design to improve electricity management efficiency and safety.
Strong durability: Adapts to a wide temperature environment of -25℃~+60℃, 10-year design life, 3-year warranty, and core components use industrial-grade components to reduce maintenance costs.
Wide range of adaptation scenarios: Flexible adaptation to a variety of industrial power equipment, can be connected directly or through a transformer, meet different power requirements, and has a wide range of applications.
| Type | D30162 |
| Standards | EN 50470-3:2022,IEC 62052-31:2015 |
| Voltage | |
| Rated voltage Un | 230V |
| Voltage range | 100~275V |
| Current | |
| Minimum current Imin | 1.25A |
| Reference current Ib | 25A |
| Maximum current Imax | 100A |
| Rated Frequency Fn | 50Hz±1.75% |
| Accuracy | Class B/1.0 for active |
| Pulsating Indicator | LED |
| Pulsating(meter constant) | 1000imp/kWh |
| Environment | |
| Temperature range | Operation:-25~55℃ |
| Storage:-40~70℃ | |
| Protection Degree | IP 20 |
| Insulation Class | II |
| Typical Power Consumption | |
| Voltage circuit active/apparent power at Un | <2.4W/6VA |
| Current circuit apparent power at Ib | <1VA |
| Communication Interface | RS485-A/B with screw type |
| Weight Of Meter | About 0.15kg |

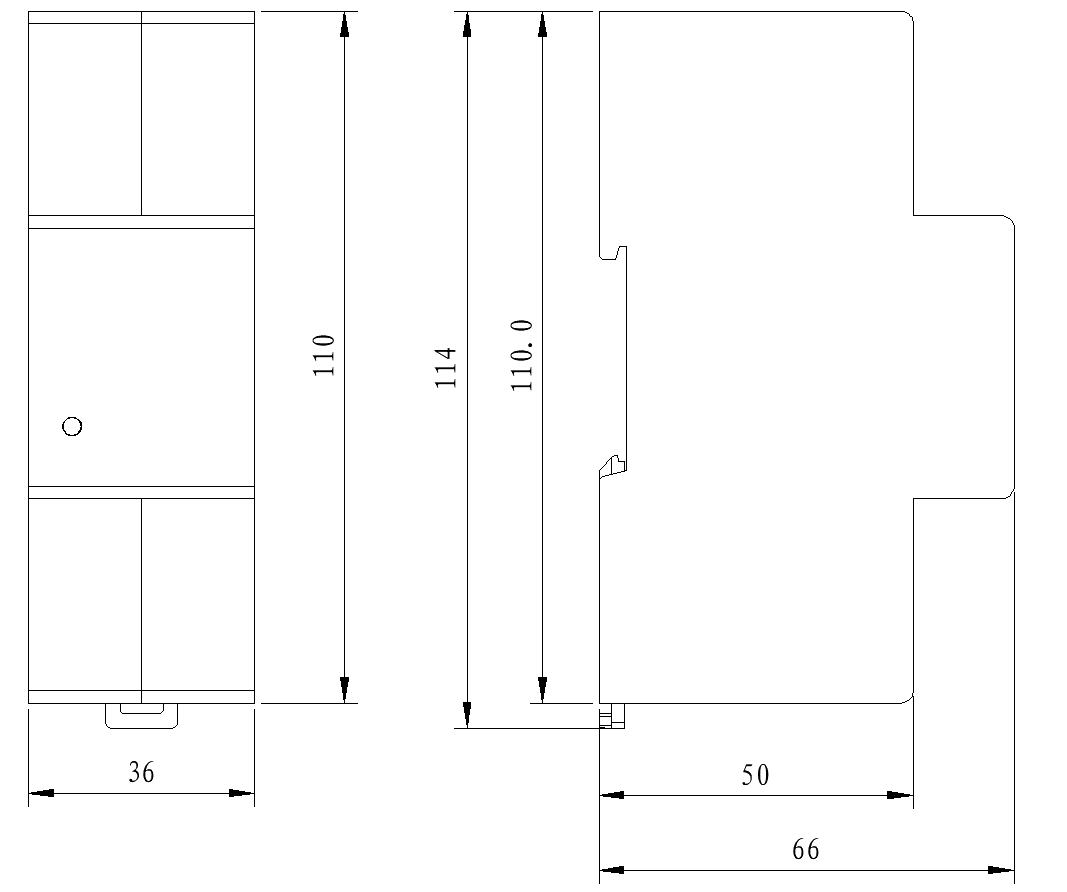

| Dimension(LxWxD) | 36×66×110mm |
WHY CHOOSE US
High-quality credit rating: Won the AAA credit rating certificate, registered with the People's Bank of China, excellent in basic quality, economic strength, debt repayment ability, etc., with low cooperation risk.
Diversified product layout: Products include smart meters, electric vehicle charging meters, AMI solutions, smart sensors and IoT platforms, etc., which can meet the diverse needs of customers in different scenarios and provide one-stop purchasing convenience.
FAQ
What communication methods does the meter support?
The meter is equipped with RS485 communication interface as standard. Through the matching meter reading software or docking with the customer's existing system, remote meter reading, data monitoring and abnormal alarm can be realized, and it is compatible with most power automation platforms.
Are special protection measures required?
The product shell is made of flame-retardant ABS material and has an IP54 protection level. No additional protection is required in ordinary industrial environments, and it can be used with a protective box in special environments.
Can the meter be adapted to electrical equipment of different powers?
External current transformers can be expanded to more than 1000A, adapting to a variety of power usage scenarios from small and medium-sized motors to large industrial equipment.
