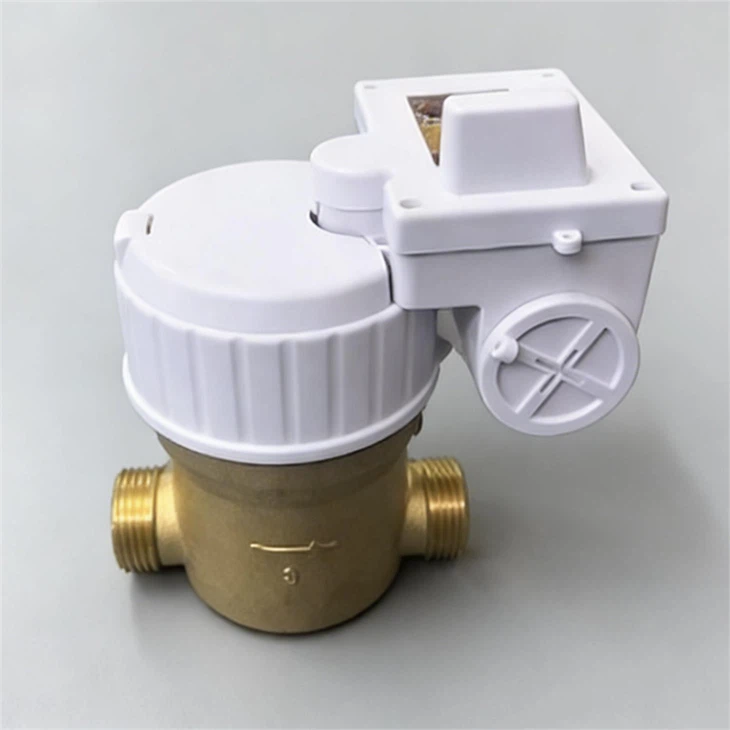

Wireless Remote Rotary Piston Water Meter Main Technical Parameters:
- Water temperature: T30
- Water pressure: MAP10
- Pressure loss: ΔP63
|
Model |
Nominal Diameter |
Q3/Q1 Ratio |
Overload Flow (Q4) |
Common Flow (Q3) |
Boundary Flow (Q2) |
Minimum Flow (Q1) |
Min Reading (m³) |
Max Reading (m³) |
|
mm |
m3/h |
m3/h |
m3 |
|||||
|
LXH-15 |
15 |
160 |
3.125 |
2.5 |
0.025 |
0.015 |
0.00005 |
99999 |
|
200 |
0.02 |
0.013 |
||||||
|
250 |
0.016 |
0.01 |
||||||
Maximum Allowable Error:
±5% in low flow zone (Q1 ≤ Q < Q2)
±2% in high flow zone (Q2 ≤ Q ≤ Q4)
Dimensions & Weight:
|
Model |
Diameter (mm) |
Length (L) |
Width (B) |
Height (H) |
Connection Type |
Weight (kg) |
|
|
mm |
D |
d |
|||||
|
LXH-15 |
15 |
115 |
98 |
140 |
G3/4B |
R1/2 |
1.2 |
Note: The dimensions and weight are for reference only; please refer to the actual product.
Installation Notes:
- Select appropriate diameter based on flow rate
- Avoid exposure to sunlight/freezing/pollution
- Install horizontally with arrow aligned to flow direction
- Maintain 10D upstream and 5D downstream straight pipe sections
- Use check valve to prevent backflow
- Flush pipeline before installation
