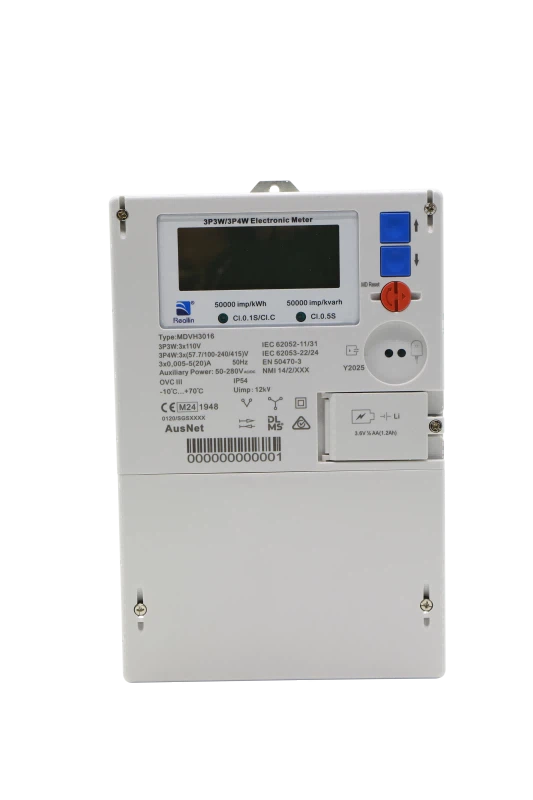

three phase four wire meter Feature
Accurate measurement: Using advanced technology, it can accurately measure the active energy of three-phase AC circuits, with reliable data, providing an accurate basis for electricity accounting.
Strong load capacity: It can stably support large current loads, meet the high-power electricity demand of large-scale power consumption places such as industry and commerce, and operate stably.
Safe and reliable: It has an anti-electricity theft design . While ensuring the fairness of electricity measurement, it also ensures the safety of product use.
Convenient installation: Reasonable design, simple and efficient installation process, can be put into use quickly, saving installation time and cost.
| Type | MDVH3016 |
| Standards | IEC 62052 - 11, IEC 62053 - 22/24, IEC 62056 - 21, IEC 62056 - 61, IEC 62059 - 32 - 1 |
| Voltage | |
| Rated voltage Un | 3P4W - 3×57.7/100 - 240/415V |
| Voltage range | 80%Un - 120%Un |
| Current | |
| Minimum current Imin | 0.01A/0.05A |
| Reference current In | 1A/5A |
| Maximum current Imax | 6A/20A |
| Starting current Ist | 0.1%In |
| Rated Frequency Fn | 50Hz |
| Accuracy | Class 0.1S for active; Class 0.5S for reactive |
| Pulsating Indicator | LED |
| Pulsating (meter constant) | 50000imp/kWh; 50000imp/kvarh |
| Environment | Operation- 10 - 70℃ |
| Temperature range | -Storage- 10 - 85℃ |
| Protection Degree | IP 54 |
| Insulation Class | II |
| Typical Power Consumption - | |
| Voltage circuit active/apparent power at Un | ＜1W/1VA (Powered by auxiliary power supply) |
| Current circuit apparent power at In | ＜1.3 VA |
| LCD Display | Color display with configurable decimal places, backlight supported |
| Backup Power Supply | Replaceable battery and internal super capacitor |
| RTC | Provides RTC with clock accuracy according to IEC62054 - 21 |
| Communication Protocol | DLMS/Modbus/DNP3 (Modbus & DNP3 is for SCADA) |
| Auxiliary Supply Facility | Support auxiliary supply facility with 50 - 280V (AC or DC) AUX first priority |
| Weight Of Meter | About 1.9kg |
| Dimension(L×W×D) | 272.0×174.5×80.5mm |
WHY CHOOSE US
Extensive market layout: With holding companies in Germany and Malaysia, and sales offices in Southeast Asia, the Middle East, South America, etc., the business covers many places at home and abroad, and can provide timely support to customers in different regions.
Excellent technical strength: Focusing on research and development, it is a member of the International LoRa Alliance, and its technology is in line with international standards (MID/IEC/ANSI/IR46). It has first-class technical innovation and product development level to ensure product technology leadership.
FAQ
What communication methods does the meter support?
The meter supports multiple communication methods such as DLMS,Modbus,DNP3,etc. It can be seamlessly connected to various intelligent power management systems, convenient for remote meter reading, data monitoring and power consumption analysis, and meet the needs of intelligent management.
Can the electricity consumption data be displayed in real time?
The meter is equipped with a high-definition LCD display screen, which can cyclically display the current voltage, current, power, cumulative power consumption, remaining power and other data.
What protection functions does the meter have?
It has multiple protection functions such as overvoltage, overcurrent, undervoltage, overload, and loss of pressure.
