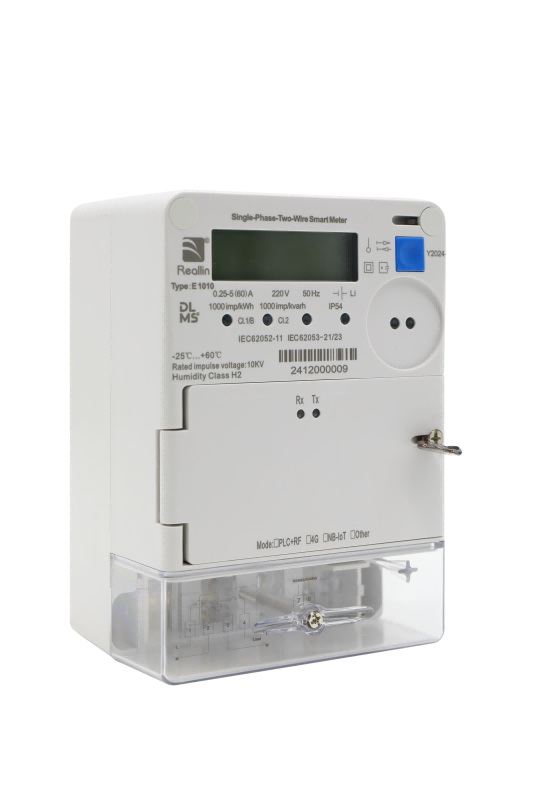

Single Phase Two Wire Smart Meter Feature
● Active/Reactive Energy, Import/Export Energy Measurement
● Various Extended Communication Technology Capabilitie
● Smart Meter Features (Interoperability, Remote Communication, Load Control, Power Quality Detection)
● Anti-Tampering Capabilities (Abnormality Detection, Event Logs, Sealable Casing)
● Prepayment Function (STS Certificate)
● OIML R46 Certified

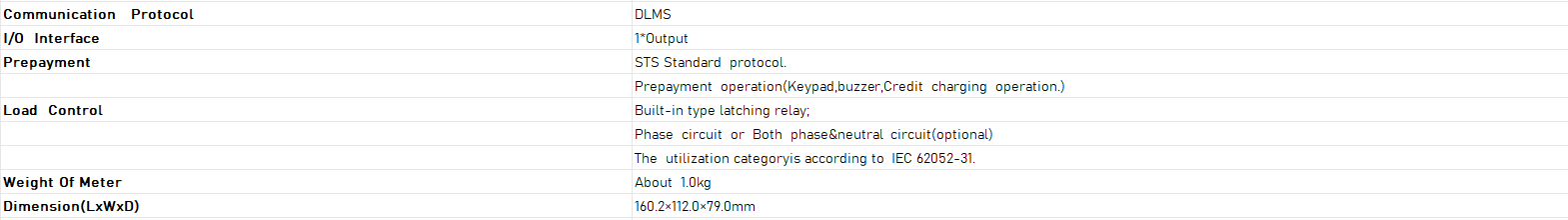

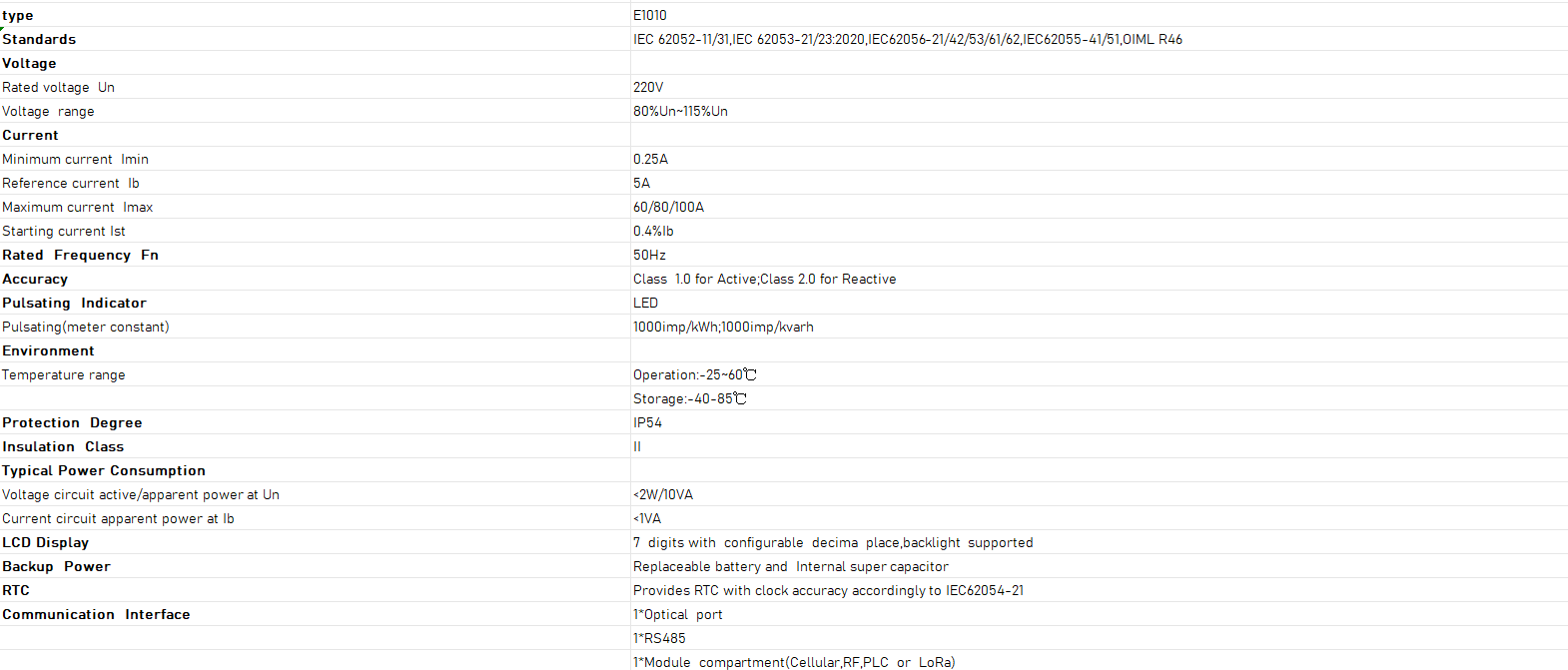

Product Parameters
FAQ
What is the current range of this meter?
The reference current is 5A, and the maximum current options are 60A, 80A, or 100A, adaptable to various applications.
What is the starting current of the meter?
The starting current is 0.4%Ib, ensuring accurate measurement even under very low loads.
What is the accuracy class of the meter?
The accuracy is Class 1.0 for active energy and Class 2.0 for reactive energy, ensuring high measurement precision.
What is the rated frequency of the meter?
The rated frequency is 50Hz, which is applicable in most countries and regions.
Does the meter have a pulse output?
Yes, the meter is equipped with an LED pulse indicator, with constants of 1000imp/kWh and 1000imp/kvarh, making data collection and calibration convenient.
