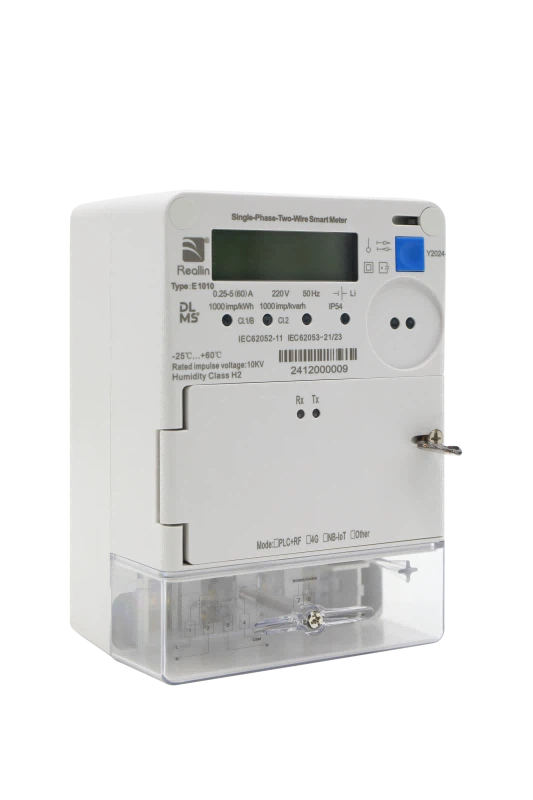

Single Phase Two Wire Smart Meter Feature
Accurate metering: It can accurately measure the active power of a 50Hz single-phase AC power grid, accurately reflect the power consumption, and have minimal error.
Multiple functions: In addition to basic metering, it also supports multi-rate billing, event recording, load curve monitoring, etc.
Convenient communication: Equipped with a variety of communication modules, such as RS485, etc. Realize remote meter reading, data upload and parameter setting.
Reliable performance: The casing is well protected and resistant to radio frequency interference. Strong stability to ensure long-term accurate operation.
| type | E1010 |
| Standards | IEC 62052-11/31,IEC 62053-21/23:2020,IEC62056-21/42/53/61/62,IEC62055-41/51,OIML R46 |
| Voltage | |
| Rated voltage Un | 220V |
| Voltage range | 80%Un~115%Un |
| Current | |
| Minimum current Imin | 0.25A |
| Reference current Ib | 5A |
| Maximum current Imax | 60/80/100A |
| Starting current Ist | 0.4%Ib |
| Rated Frequency Fn | 50Hz |
| Accuracy | Class 1.0 for Active;Class 2.0 for Reactive |
| Pulsating Indicator | LED |
| Pulsating(meter constant) | 1000imp/kWh;1000imp/kvarh |
| Environment | |
| Temperature range | Operation:-25~60℃ |
| Storage:-40-85℃ | |
| Protection Degree | IP54 |
| Insulation Class | II |
| Typical Power Consumption | |
| Voltage circuit active/apparent power at Un | <2W/10VA |
| Current circuit apparent power at Ib | <1VA |
| LCD Display | 7 digits with configurable decima place,backlight supported |
| Backup Power | Replaceable battery and Internal super capacitor |
| RTC | Provides RTC with clock accuracy accordingly to IEC62054-21 |
| Communication Interface | 1*Optical port |
| 1*RS485 | |
| 1*Module compartment(Cellular,RF,PLC or LoRa) | |
| Communication Protocol | DLMS |
| I/O Interface | 1*Output |
| Prepayment | STS Standard protocol. |
| Prepayment operation(Keypad,buzzer,Credit charging operation.) | |
| Load Control | Built-in type latching relay; |
| Phase circuit or Both phase&neutral circuit(optional) | |
| The utilization categoryis according to IEC 62052-31. | |
| Weight Of Meter | About 1.0kg |

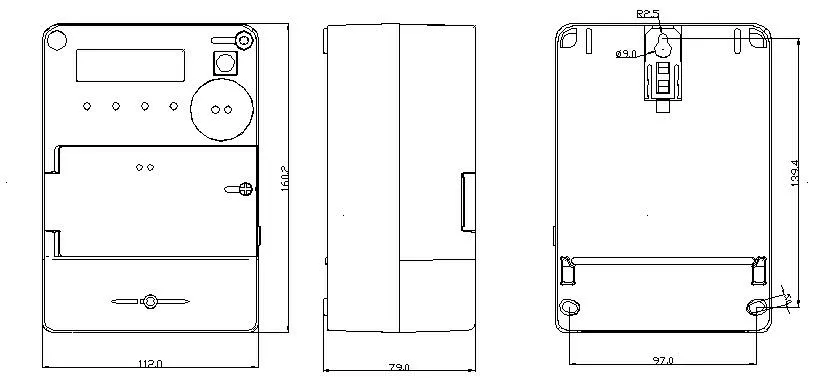

| Dimension(LxWxD) | 160.2×112.0×79.0mm |
WHY CHOOSE US
International standard adaptation: The product complies with international technical standards (MID/IEC/ANSI/IR46) and is suitable for multiple regional markets around the world.
Authoritative quality certification: It has obtained authoritative certifications such as Germany's PTB and the Netherlands' KEMA, and its quality is widely recognized internationally.
FAQ
How is the remote communication module?
RS485 wired communication has a high success rate of data transmission, ensuring uninterrupted meter reading.
Can it work normally in extreme temperature environments?
The operating temperature range is - 25℃~+60℃. It can operate stably in cold areas or high temperature environments, meeting the needs of special scenarios such as high altitude and humidity.
Does it have anti-electricity theft function?
Built-in anti-electricity theft modules such as cover opening detection and reverse power consumption detection. Abnormal situations will be automatically recorded and alarmed, and data will be uploaded to the management system in real time to effectively prevent electricity theft.
