single phase din rail meter Feature
Easy installation: The single-phase rail meter adopts a standardized DIN35mm rail installation design, without the need for complex fixing brackets, and can be directly inserted into the rail of the distribution cabinet or distribution box.
Accurate measurement: It can accurately measure single-phase active and reactive power, as well as multiple electrical parameters such as voltage, current, and power, meeting the strict requirements for measurement accuracy in different scenarios.
Strong stability: It adopts high-quality electronic components and mature circuit design, has good anti-interference ability, and can operate stably in complex power consumption environments such as voltage fluctuations and electromagnetic interference.
Convenient remote management: Most models are equipped with communication interfaces such as RS485, support docking with centralized meter reading systems, and realize remote meter reading, data monitoring and power consumption analysis.
| Type | D10163 |
| Standards | EN 50470-3:2022,IEC 62052-31:2015 |
| Voltage | |
| Rated voltage Un | 230V |
| Voltage range | 100~275V |
| Current | |
| Minimum current Imin | 1.25A |
| Reference current Ib | 25A |
| Maximum current Imax | 100A |
| Rated Frequency Fn | 50Hz±1.75% |
| Accuracy | Class B/1.0 for active |
| Pulsating Indicator | LED |
| Pulsating(meter constant) | 1000imp/kWh |
| Environment | |
| Temperature range | Operation:-25~55℃ |
| Storage:-40~70℃ | |
| Protection Degree | IP 20 |
| Insulation Class | II |
| Typical Power Consumption | |
| Voltage circuit active/apparent power at Un | <2.4W/6VA |
| Current circuit apparent power at Ib | <1VA |
| Communication Interface | RS485-A/B with screw type |
| Weight Of Meter | About 0.1kg |

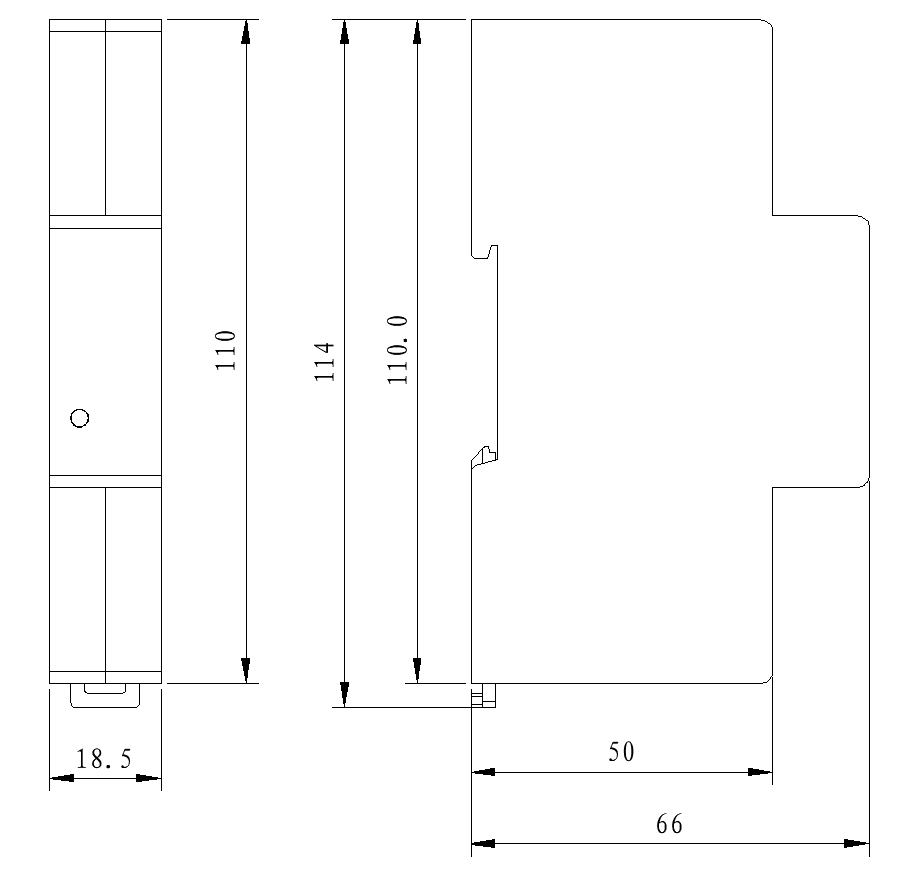

| Dimension(LxWxD) | 18.5×66×110mm |
single phase din rail meter manufacturer
Global layout and experience: Since its establishment in 2005, it has been deeply involved in the industry for more than 20 years, with subsidiaries in Germany and Malaysia, and business covering Southeast Asia, the Middle East, South America and other regions, familiar with global market rules and localization needs.
Full-chain service advantages: Provide five-star after-sales service, complete energy management system and social responsibility management system, and guarantee from pre-sales technical support to after-sales maintenance.
FAQ
What functions can a single-phase rail meter achieve?
Single-phase rail meters can measure single-phase active positive and negative phase electric energy, and some can also measure reactive positive and negative phase electric energy.
How to choose a single-phase rail meter with a suitable range?
It needs to be determined based on the actual power load. First estimate the maximum power of the electrical equipment, generally considering the total power when common electrical appliances are used at the same time.
What are the accuracy levels of single-phase rail meters?
Common accuracy levels include 0.5S, 1.0, 2.0, etc. When choosing, it is necessary to comprehensively consider the requirements of the application scenario for measurement accuracy and cost factors. If the accuracy requirements are not high, choosing a meter with a lower accuracy level can reduce procurement costs.
