D1039 Single Phase Meter

Single Phase Two Wire DIN Rail Meter Feature



Active Energy Measurement – ​​Provides accurate active energy measurement, ensuring reliable metering.



Single Energy Direction – Supports unidirectional energy measurement, clarifying application scenarios.

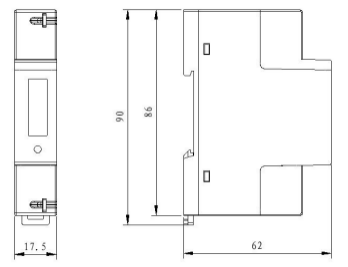

Compact 1TE Width Design – Ultra-thin 1TE width design saves installation space.



Modbus Interface – Built-in Modbus communication interface facilitates remote monitoring and data collection.



For AC Charging Stations & Sub-billing Applications – Suitable for AC electric vehicle charging stations and sub-billing applications.



MID Certified – Complies with European metering standards and ensures legal compliance.

Q1: Which international standards does this meter comply with?
A1: The meter complies with EN50470-1, EN50470-3, and IEC62053-23:2020, ensuring reliable metering and safety compliance.

Q2: What is the rated voltage and operating voltage range?
A2: The rated voltage is 230V, with an operating range of 80%Un to 120%Un.

Q3: What are the current specifications?
A3: Minimum current (Imin) is 0.2A, base current (Ib) is 5A, and maximum current (Imax) is 45A.

Q4: What is the starting current of the meter?
A4: The starting current is 0.4% of Ib, ensuring even small loads are accurately detected.

Q5: What is the rated frequency of the meter?
A5: The rated frequency is 50Hz, suitable for mainstream power grids.
