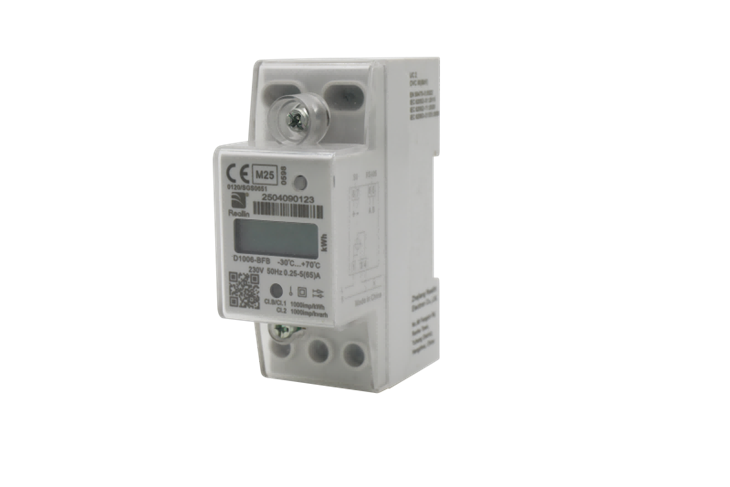

Single Phase Two Wire DIN Rail Meter Feature
Active and Reactive Energy Measurement: Supports accurate measurement of active and reactive energy, ensuring more comprehensive electricity usage data.
Single or Bidirectional Energy Direction: Enables unidirectional or bidirectional energy metering to meet the needs of different application scenarios.
2TE Wide: The 2TE wide design facilitates installation in standard distribution boxes or electrical cabinets.
Modbus Interface: A built-in Modbus communication interface enables seamless integration with various monitoring systems and platforms.
Suitable for AC E-mobility Charging Stations & Any Sub-billing Applications: Particularly suitable for AC electric vehicle charging stations and various sub-metering and billing applications.
MID & PTB & IEC & UL Certificates: International certifications such as MID, PTB, IEC, and UL ensure product reliability and compliance.
Product Parameters
FAQ
Q1: What is the power consumption of the meter?
A1: Typical power consumption is <1.5W/8VA for the voltage circuit and <1VA for the current circuit.
Q2: Which international standards does the product comply with?
A2: It complies with EN 50470-3:2022, IEC 62053-21/23:2020, IEC 62052-11:2020, IEC 62052-31:2015, UL61010-1, and UL61010-2-030.
Q3: What is the rated voltage and voltage range?
A3: The rated voltage is 230V/240V, and the operating voltage range is 80%Un ~ 120%Un.
Q4: What is the current measurement range?
A4: The minimum current is 0.25A, reference current is 5A, and the maximum current is 65A.
Q5: What is the accuracy class of the meter?
A5: The meter has Class B/1.0 accuracy for active energy and Class 2.0 for reactive energy.
Q6: What is the operating temperature range?
A6: The operating temperature range is -30℃ to +70℃, and storage temperature is -40℃ to +85℃.
Q7: What is the protection degree and insulation class?
A7: It has IP51 protection (when installed in protective enclosure) and Insulation Class II.
