-Main Features
Active Energy Measurement
Four Measurement Modes Configurable
Maximum Communication Speed Up To 921.6kbps
Anti-Tampering Capability (Abnormality Detection, Sealable Casing)
Provide Daily, Monthly, Yearly History Data For Billing
Easy For Installation On The Third Party Base
-Specification

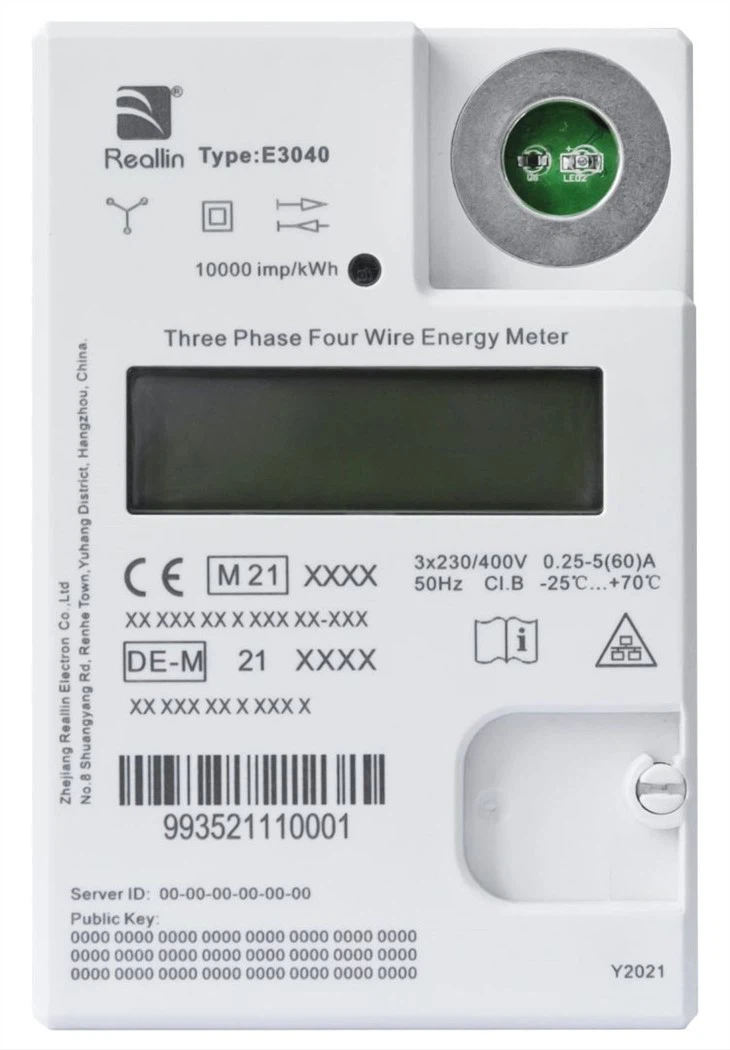

Type
Three Phase Four Wire Energy Meter
Standards
EN 50470-1, EN 50470-3, EN 62052-31:2016
Voltage
Rated voltage Un
Voltage range
3x230/400V
80%Un~115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
0.25A
5A
60A
0.4%Ib
Rated Frequency Fn
50Hz
Accuracy
Class B for active
Pulsating Indicator
Pulsating (meter constant)
LED
10000imp/kWh
10000imp/kWh
Environment
Temperature range
Operation: -25~70℃
Storage:-40~85℃
Protection Degree
IP 51
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜4VA
LCD Display
Double line display, 6 digits for energy display
Communication Interface
1*Infor port
1*LMN port
Internal Bluetooth(optional)
1*LMN port
Internal Bluetooth(optional)
Communication Protocol
SML
Weight Of Meter
About 0.4kg

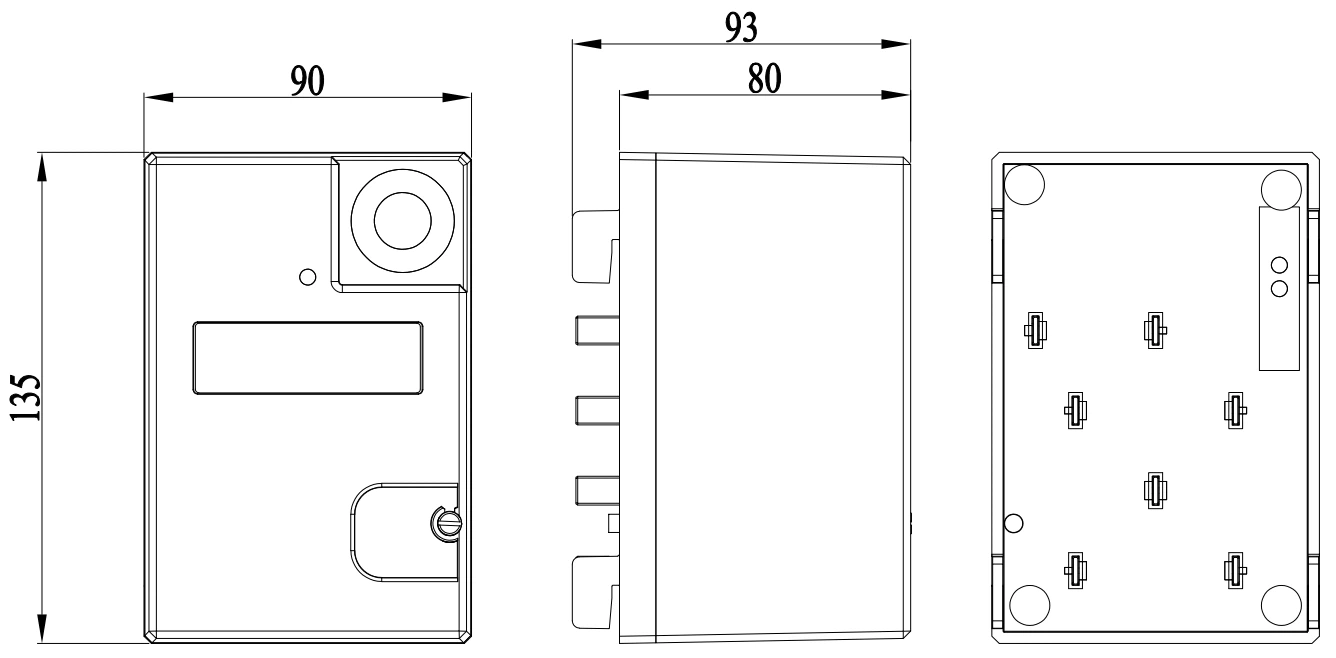

Dimension(LxWxD)
135.0 × 90.0 × 93.0mm
