-Main Features
Active, Reactive And Net Energy Measurement
Single Or Bidirectional Energy Directions Configurable
4TE Wide
Modbus Interface

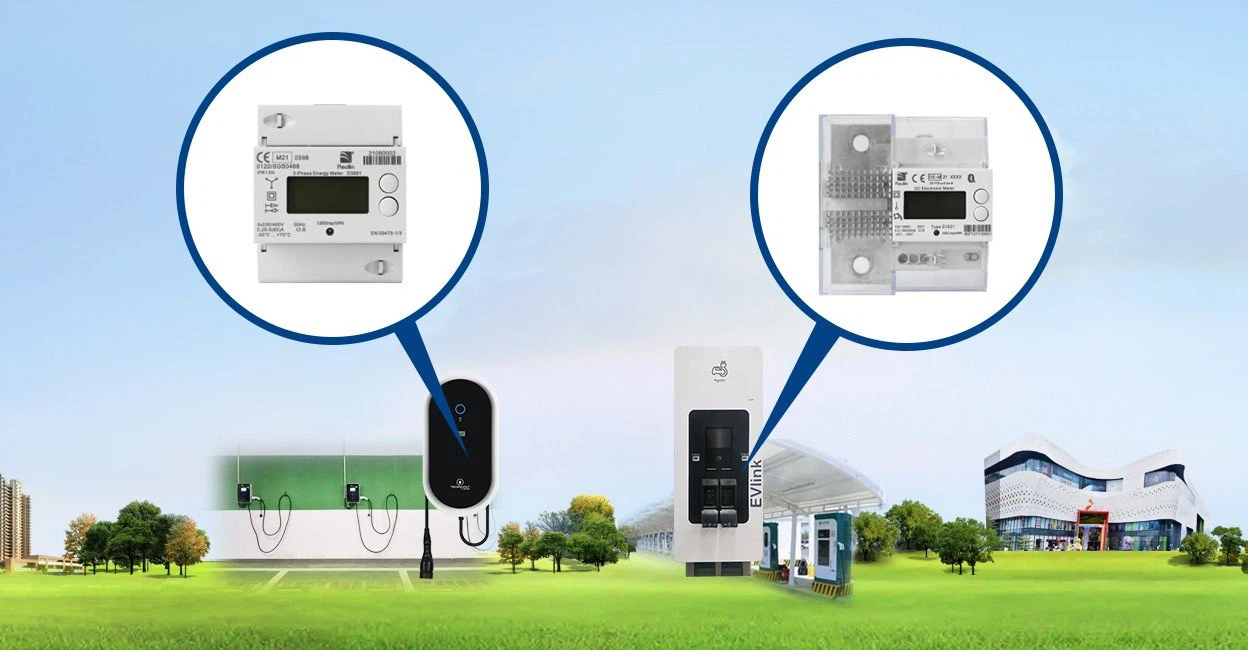

Suitable For AC E-mobility Charging Stations & Any Sub-billing Applications
MID & IEC Certificates
-Specification
Type

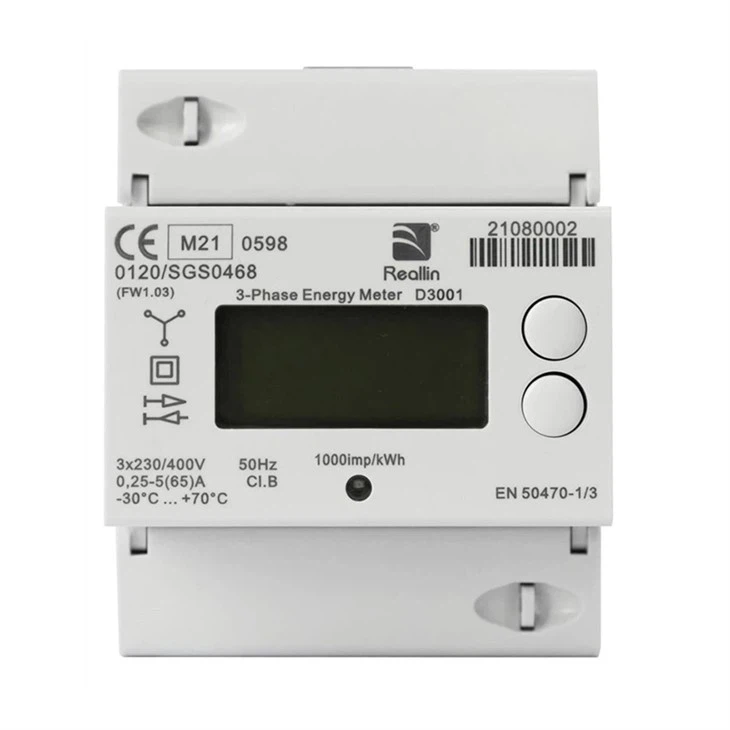

Three Phase Four Wire DIN Rail Meter
Standards
EN 50470-1/3, IEC 62052-11:2020, IEC 62053-21/23:2020
Voltage
Rated voltage Un
Voltage range
3x230/400V
80%Un~115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
0.25A
5A
65A
0.4%Ib
Rated Frequency Fn
50/60Hz
Accuracy
Class B/1.0 for active; Class 2.0 for reactive
Pulsating Indicator
Pulsating (meter constant)
LED
1000imp/kWh; 1000imp/kvarh
1000imp/kWh; 1000imp/kvarh
Environment
Temperature range
Operation: -30~70℃
Storage: -40~85℃
Protection Degree
IP 51 in protective enclosure
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜4VA
LCD Display
7 digits with backlight supported
Communication Interface
RS485 with screw type, maximum upto 38400bps
Communication Protocol
Modbus protocol
Weight Of Meter
About 0.26kg
Dimension(LxWxD)
86.0 x 70.0 x 62.0mm
