DC Electronic Meter J50159 Feature
Active energy measurement: Accurately measure the actual work done in the circuit, providing basic and key data for energy billing, energy consumption analysis, etc.
Unidirectional or bidirectional energy direction: Support accurate measurement of unidirectional transmission of energy, and can also adapt to bidirectional flow scenarios (such as distributed power grid connection), flexibly identify and monitor the inflow and outflow direction of energy.
2TE wideband: With the adaptability of 2TE as the wideband standard, it can stably realize the power measurement and control function in the installation space or system architecture that meets the wideband specification.
Line loss measurement: It can monitor and calculate the power loss caused by resistance and other factors of the transmission line, help to explore abnormal line loss points, and provide data support for energy saving and loss reduction and optimized operation of the power grid.
CE certificate: The product has passed the EU CE certification and meets the requirements of the directive in terms of safety and electromagnetic compatibility.
CE certificate: related power metering, monitoring and other equipment meet the requirements of European unified safety, health, environmental protection and other directives.
| Type | DC Electronic Meter J50159 |
| Standards | EN 50470-4:2023,IEC62053-41:2021,IEC62052-31:2015,UL61010-1,UL61010-2-030 |
| Voltage | |
| Rated voltage Un | 1500V |
| Voltage range | 150V |
| Current | |
| Minimum current Imin | 9A |
| Reference current Ib | 300A |
| Maximum current Imax | 1500A |
| Starting current Ist | 0.4%Ib |
| Accuracy | Class C |
| Pulsating Indicator | LED |
| Pulsating(meter constant) | 1000imp/kWh |
| Environment | |
| Temperature range | Operation:-40~80℃ |
| Storage:-40~85℃ | |
| Protection Degree | IP 00 |
| Insulation Class | II |
| Typical Power Consumption | |
| Voltage circuit power at Un | <0.5W |
| Current circuit power at Imax | <40mW/A*Imax |
| LCD Display | Dot Matrix type,backlight supported |
| Auxiliary Power Supply | <5W |
| Communication Interface | 3*RS485 port,upto 921600bps |
| Weight Of Meter | About 0.8kg |

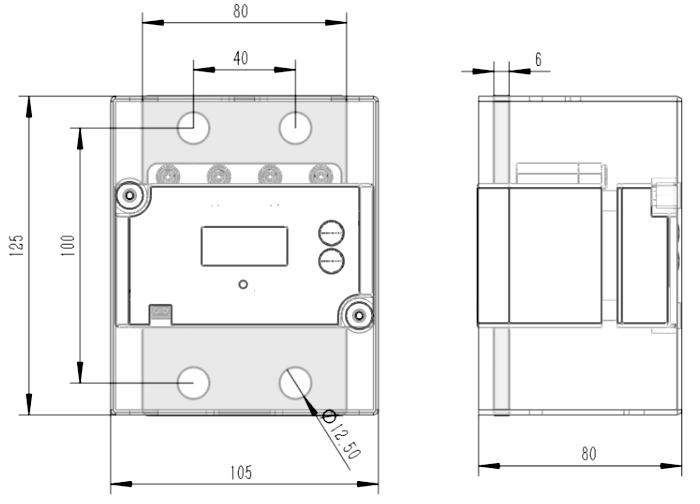

| Dimension(LxWxD) | 125×105×80mm |
DC Electronic Meter--GSH6225.8B manufacturer
Simplified system structure, reduced failure probability
The DC measurement and control system does not need to process complex parameters such as the phase and frequency of the AC power, the circuit design is simpler (such as eliminating the rectification and inversion links), and the number of components is reduced, thereby reducing the probability of failure caused by component aging, poor contact, etc.
Fast dynamic response, control accuracy can reach micron level
The speed and position control of DC motors, actuators and other equipment can be directly adjusted by DC voltage/current, with fast response speed (millisecond level), and control algorithms (such as PID control) are easier to achieve precise adjustment.
FAQ
1. What is DC electronic measurement and control?
DC electronic measurement and control refers to the electronic measurement and control technology for DC circuits or systems. Through sensors, controllers, actuators and other equipment, it can realize real-time monitoring of DC voltage, current, power, temperature and other parameters.
2. What is the main difference from AC measurement and control?
DC measurement and control processes constant or slowly changing DC signals (such as 0-1000V DC voltage), and AC measurement and control processes alternating signals (such as 50Hz sine wave).
3. What is the key to DC power measurement?
Dynamic response: synchronous sampling of voltage and current when the load changes suddenly; Noise suppression: switching power supply ripple and electromagnetic interference (EMI) in the DC system may cause measurement deviation, and low-pass filtering or shielding measures are required.
